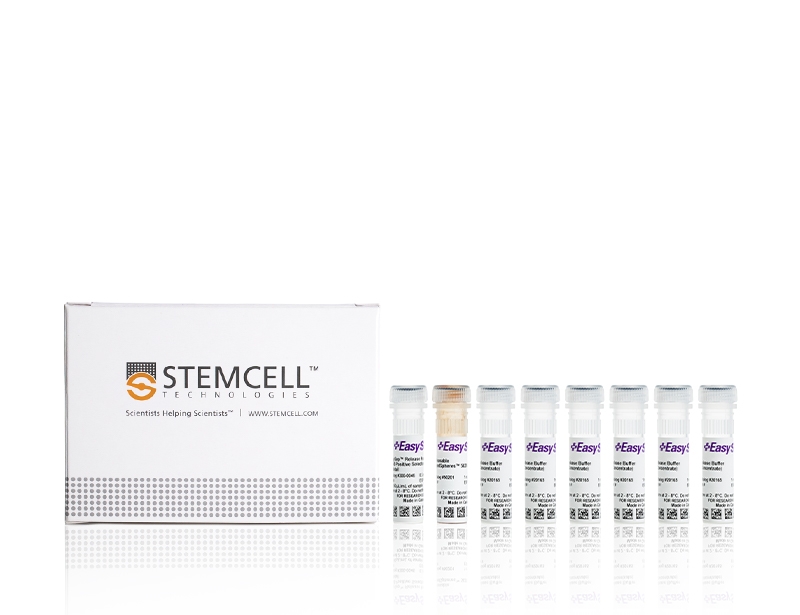

EasySep™ Release Human CD45 Positive Selection Kit

Immunomagnetic positive selection kit using particle release technology

概要
技术资料
数据及文献

概要

The EasySep™ Release Human CD45 Positive Selection Kit is designed to isolate CD45+ leukocytes from single-cell suspensions of primary human tissues and tumors, or tissues and tumor xenografts from humanized mice, by immunomagnetic positive selection.

Desired cells are labeled with antibodies and magnetic particles, and separated without columns using an EasySep™ magnet. Unwanted cells are simply poured off, while desired cells remain in the tube. Then, bound magnetic particles are removed from the EasySep™-isolated CD45+ cells, which are immediately available for downstream applications. Following cell isolation with this EasySep™ Release kit, antibody complexes remain bound to the cell surface and may interact with Brilliant Violet™ antibody conjugates, polyethylene glycol-modified proteins or other chemically related ligands.

技术资料

Document Type 产品名称 Catalog # Lot # 语言
Product Information Sheet EasySep™ Release Human CD45 Positive Selection Kit 100-0105 All English
Product Information Sheet EasySep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0107 All English

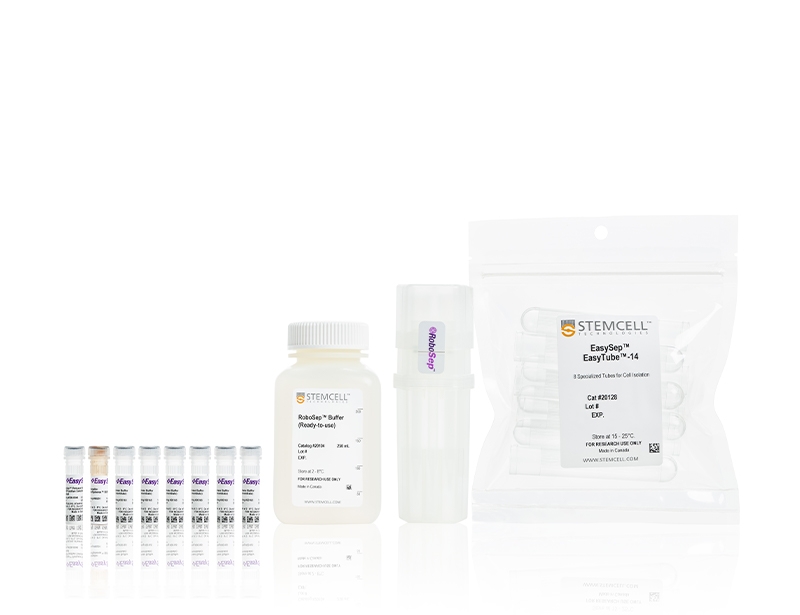

Product Information Sheet RoboSep™ Release Human CD45 Positive Selection Kit 100-0108 All English

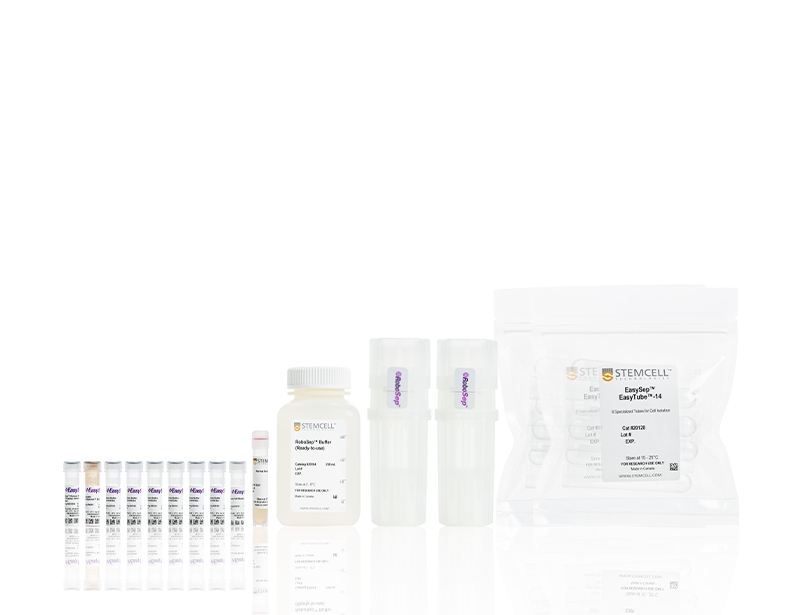

Product Information Sheet RoboSep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0109 All English
Safety Data Sheet 1 EasySep™ Release Human CD45 Positive Selection Kit 100-0105 All English
Safety Data Sheet 2 EasySep™ Release Human CD45 Positive Selection Kit 100-0105 All English
Safety Data Sheet 3 EasySep™ Release Human CD45 Positive Selection Kit 100-0105 All English
Safety Data Sheet 1 EasySep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0107 All English
Safety Data Sheet 2 EasySep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0107 All English
Safety Data Sheet 3 EasySep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0107 All English
Safety Data Sheet 4 EasySep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0107 All English
Safety Data Sheet 5 EasySep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0107 All English
Safety Data Sheet 1 RoboSep™ Release Human CD45 Positive Selection Kit 100-0108 All English
Safety Data Sheet 2 RoboSep™ Release Human CD45 Positive Selection Kit 100-0108 All English
Safety Data Sheet 3 RoboSep™ Release Human CD45 Positive Selection Kit 100-0108 All English
Safety Data Sheet 4 RoboSep™ Release Human CD45 Positive Selection Kit 100-0108 All English
Safety Data Sheet 1 RoboSep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0109 All English
Safety Data Sheet 2 RoboSep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0109 All English
Safety Data Sheet 3 RoboSep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0109 All English
Safety Data Sheet 4 RoboSep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0109 All English
Safety Data Sheet 5 RoboSep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0109 All English
Safety Data Sheet 6 RoboSep™ Release Human CD45 Positive Selection Kit for Humanized Mice 100-0109 All English

数据及文献

Data

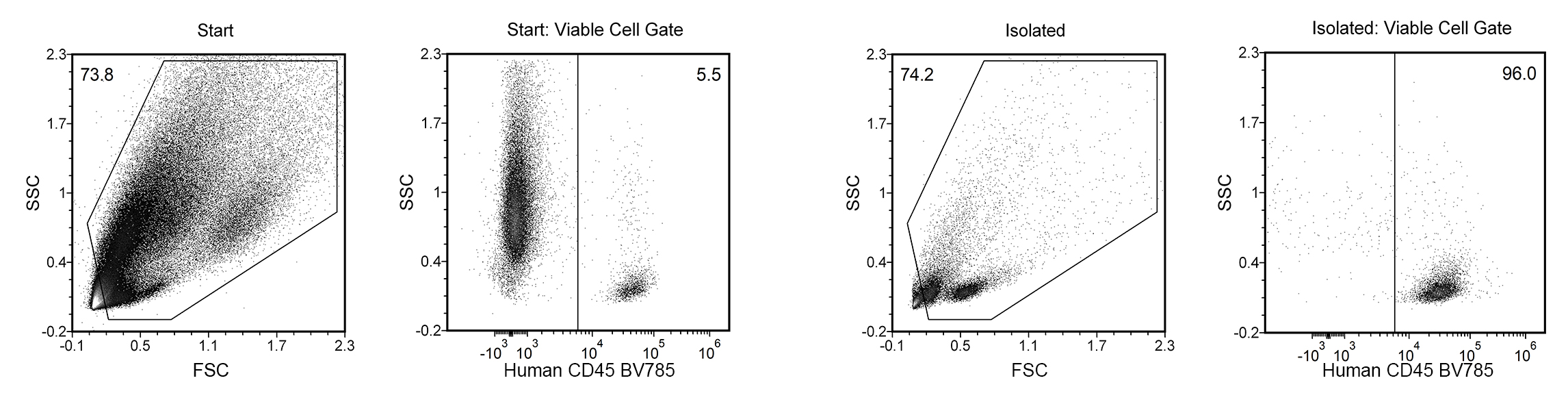

Using the EasySep™ Release Human CD45 Positive Selection Kit, the CD45+ TIL purities of the start and final isolated fractions are 5.5% and 96.0%, respectively.

Figure 1. EasySep™ Release Human CD45 Positive Selection Kit

Starting with a single-cell suspension of a human breast cancer tumor xenograft (MDA-MB-231) sample from an NRG-3GS humanized mouse, the CD45+ TIL purities of the start and final isolated fractions are 5.5% and 96.0%, respectively.
NOTE: Cell debris and dead cells were excluded from the analysis based on DRAQ5™ and DAPI fluorescence.

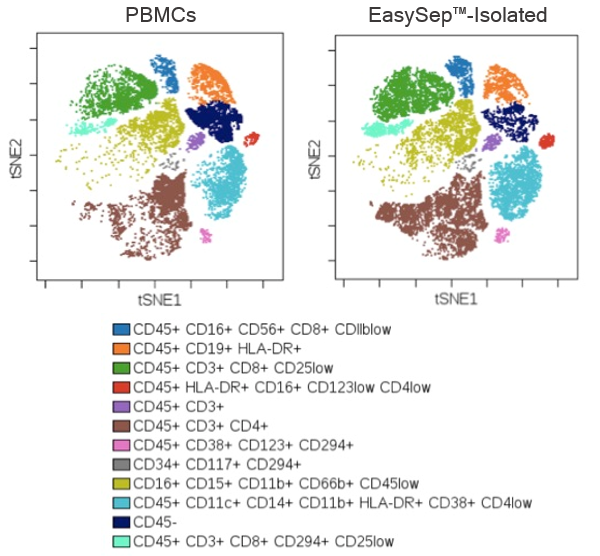

Using PBMCs as a startnig sample, this t-SNE plot shows that EasySep™-isolated CD45+ cells are representative of the starting leukocyte population.

Figure 2. EasySep™-Isolated CD45+ Cells are Representative of the Starting Leukocyte Population

Mass cytometry data comparing the composition of immune subsets in PBMCs and EasySep™-isolated cells from the same donor. Starting with whole blood, PBMCs were prepared by density gradient centrifugation using Lymphoprep™. To compare immune subset composition pre- and post-EasySep™ isolation, a fraction of the PBMCs was further isolated using EasySep™ Release Human CD45 Positive Selection Kit and the pre- and post-isolated fractions were assessed by mass cytometry (CyTOF®). t-SNE plots of cells stained with 19 markers and analyzed by CyTOF® are shown (n = 1).

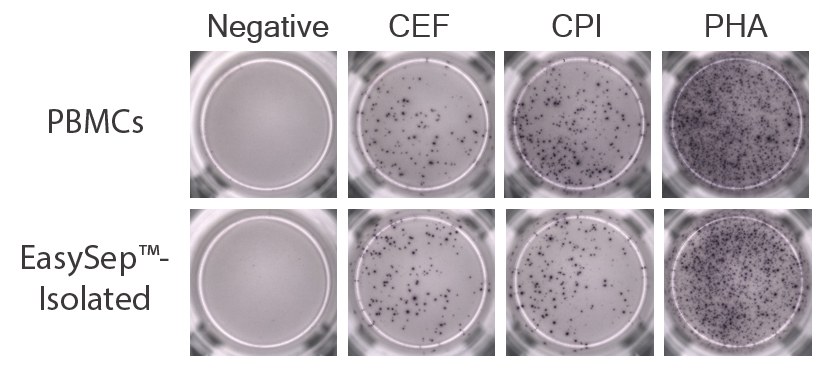

PBMCs pre- and post-EasySep™ isolation were incubated in peptide pools (CEF, CPI, or PHA) and a robust population of IFN-gamma-producing cells in these respective samples are visible on ELISpot plates, showing that EasySep™-isolated CD45+ cells produce IFN-gamma in response to antigen and mitogen stimulation.

Figure 3. EasySep™-Isolated CD45+ Cells Produce IFN-gamma in Response to Antigen and Mitogen Stimulation

PBMCs pre- and post-EasySep™ isolation were incubated for 24 hours in the presence of peptide pools (CEF for antigen-specific CD8+ T cell response and CPI for antigen-specific CD4+ T cell response) or mitogen (phytohemagglutinin [PHA]). Following incubation, ELISpot plates were processed and IFN-gamma-producing cells were counted using an AID ELISpot reader. Representative images of ELISpot assays are shown (n = 3).

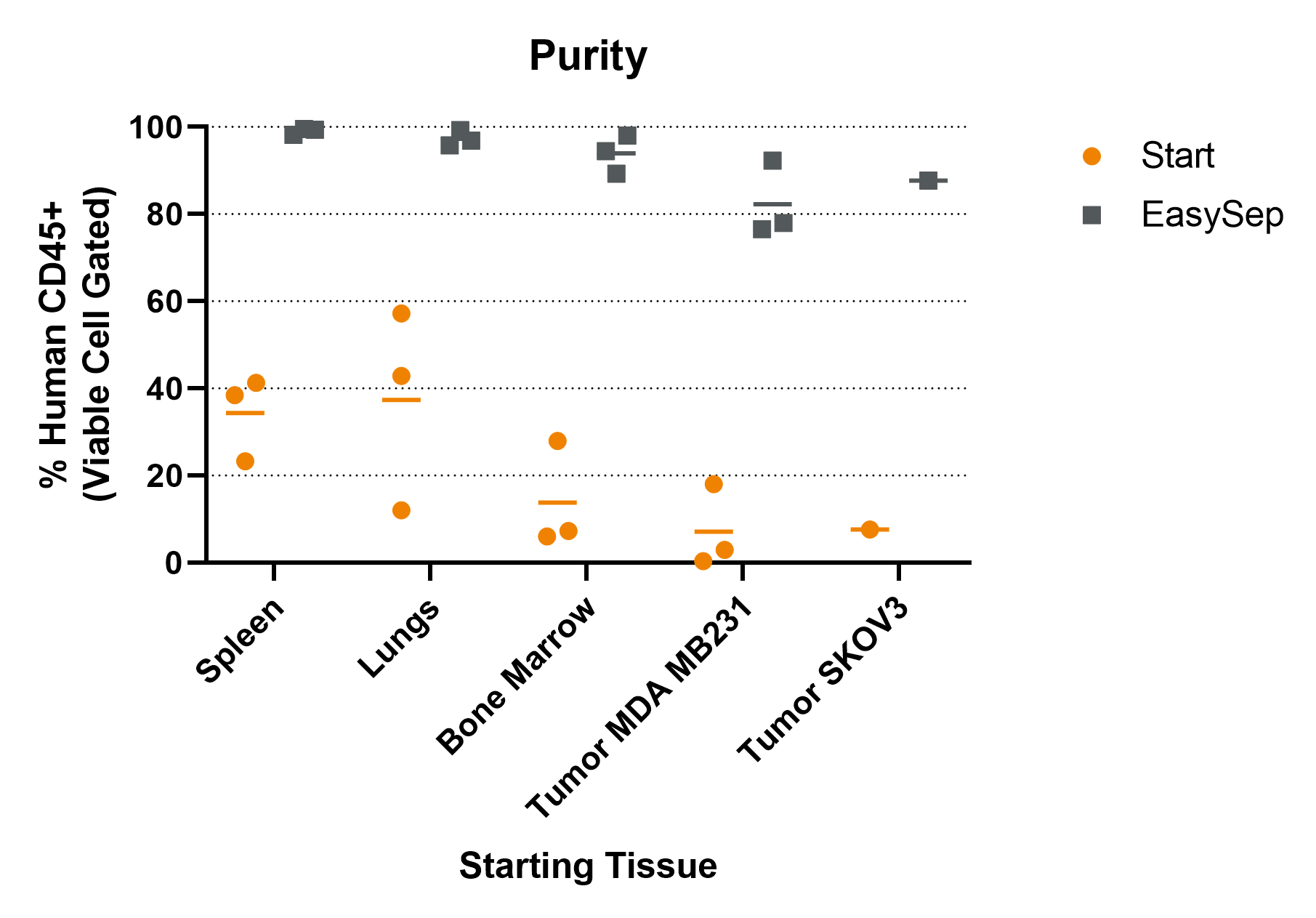

CD45+ cells isolated from spleens, lungs, bone marrow, MDA MB231 tumors, and SKOV3 tumors using EasySep™ are highly purified.

Figure 4. CD45+ Cells Isolated by EasySep™ from Various Tissues Are Highly Purified

A humanized mouse tumor model was generated by engraftment of human CD34+ hematopoietic stem and progenitor cells into NRG-3GS mice followed by xenotransplantation with human cancer cell lines, MDA-MB-231 (breast cancer) or SKOV-3 (ovarian carcinoma). Starting with a single-cell suspension of spleens, lungs, bone marrow, or tumors, human CD45+ leukocytes were isolated using EasySep™ Release Human CD45 Positive Selection Kit. The starting frequencies and isolated purities of human CD45+ cells of individual experiments and averages are shown.
