细胞培养基及添加物

STEMdiff™ Midbrain Neuron Maturation Kit

Maturation kit for generation of functional midbrain-type neurons from human ES and iPS cell-derived neuronal precursor cells

概要
技术资料
数据及文献

概要

The STEMdiff™ Midbrain Neuron Maturation Kit (Catalog #100-0041) is used in conjunction with the STEMdiff™ Midbrain Neuron Differentiation Kit (Catalog #100-0038) to generate a mixed population of midbrain-type neurons from neural progenitor cells derived from human pluripotent stem cells. These media will produce a population of midbrain neurons (≥ 15% TH-positive dopaminergic neurons; ≥ 90% class III βtubulin-positive neurons; < 10% GFAP-positive astrocytes). Cells derived using these products are versatile tools for modeling human neurological development and disease, drug screening, toxicity testing, and cell therapy validation.

数据及文献

Data

Experimental Protocol for STEMdiff™ Midbrain Neuron Differentiation and Maturation Kits (Embryoid Body Protocol)

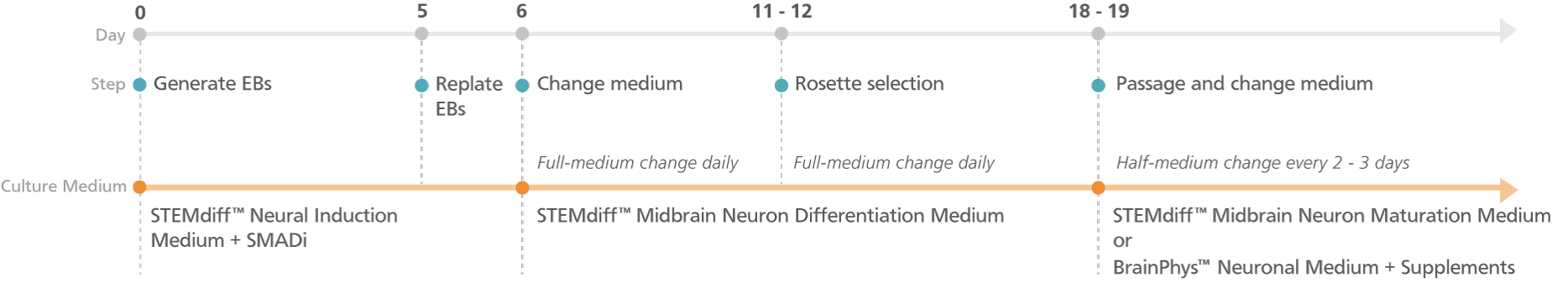

Figure 1. Schematic for the Embryoid Body Protocol

Midbrain-type neurons, including dopaminergic neurons, can be generated from neural precursors after 12 days in STEMdiff™ Midbrain Neuron Differentiation Medium. For differentiation of precursors from embryonic and induced pluripotent stem cells, see the PIS.

Experimental Protocol for STEMdiff™ Midbrain Neuron Differentiation and Maturation Kits (Monolayer Protocol)

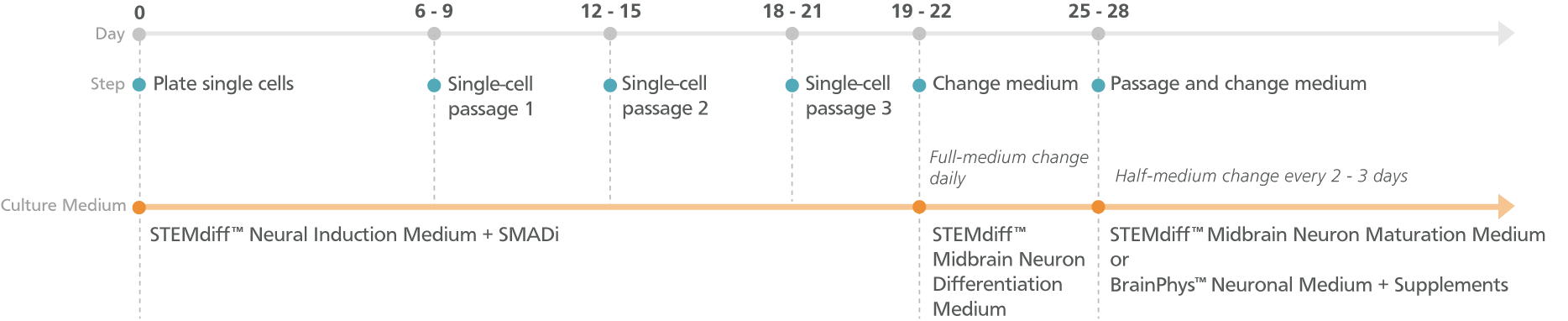

Figure 2. Schematic for the Monolayer Protocol

Midbrain-type neurons, including dopaminergic neurons, can be generated from neural precursors after 6 days in STEMdiff™ Midbrain Neuron Differentiation Medium. For differentiation of precursors from embryonic and induced pluripotent stem cells, see the PIS.

Midbrain-Type Neurons Arise From Neural Progenitor Cells After Culture in STEMdiff™ SMADi Neural Induction Kit and STEMdiff™ Midbrain Culture System

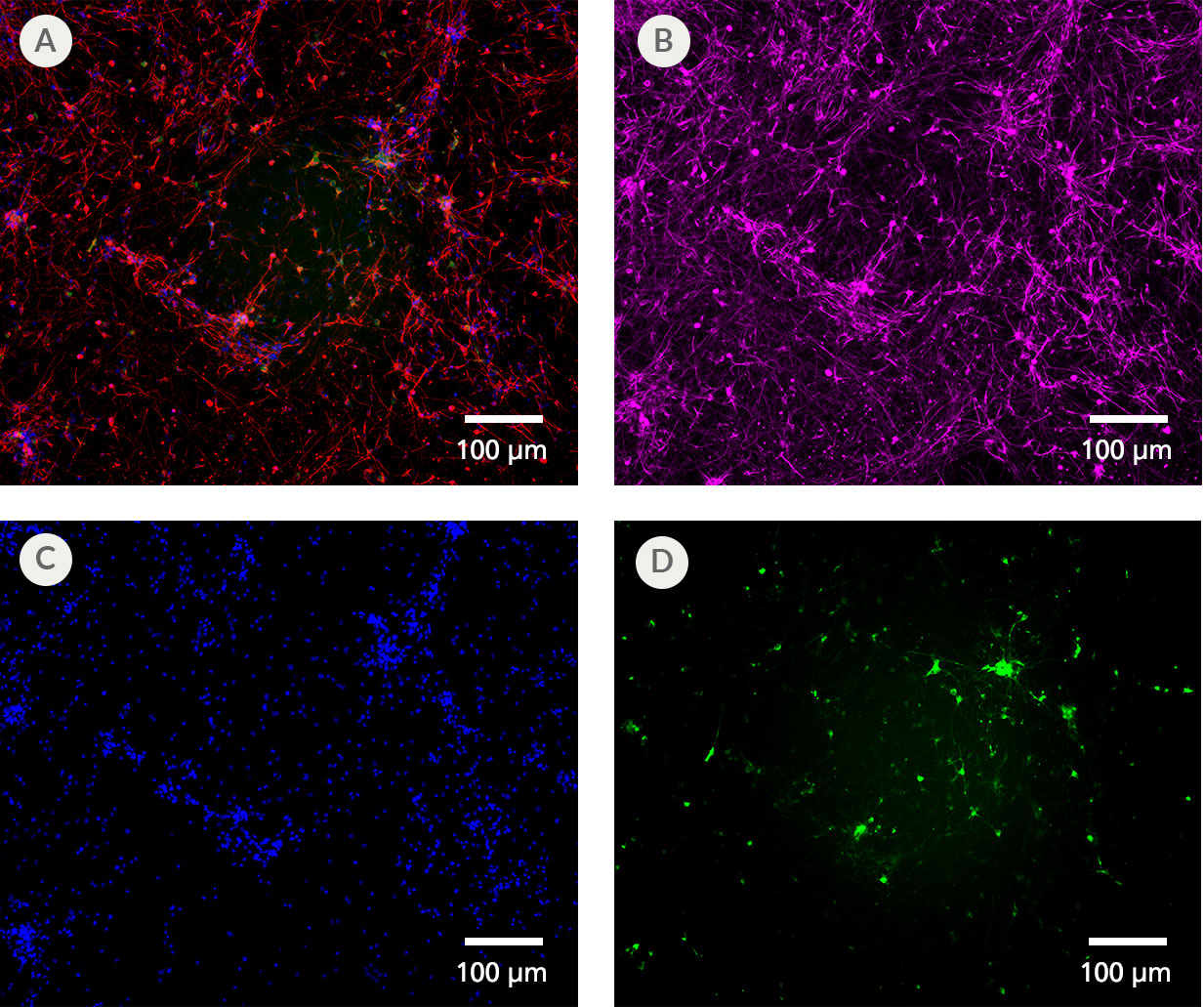

Figure 3. Midbrain-Type Neurons Are Generated After Culture in STEMdiff™ Midbrain Neuron Differentiation and Maturation Kits

NPCs generated from H1 hPSCs in mTeSR™1 using the STEMdiff™ SMADi Neural Induction Kit embryoid body (EB) protocol were differentiated and matured to midbrain-type neurons using the STEMdiff™ Midbrain Neuron Differentiation and Maturation Kits. (A) Midbrain-type neurons were formed after hPSC-derived NPCs were cultured with the STEMdiff™ Midbrain Neuron Differentiation Kit for 12 days and STEMdiff™ Midbrain Neuron Maturation Kit for 14 days. The resulting cultures contain a population of (B) class III β-tubulin-positive neurons (magenta), with (D) more than 15% Tyrosine Hydroxylase-positive cells (green). (C) Nuclei are labeled with DAPI (blue).

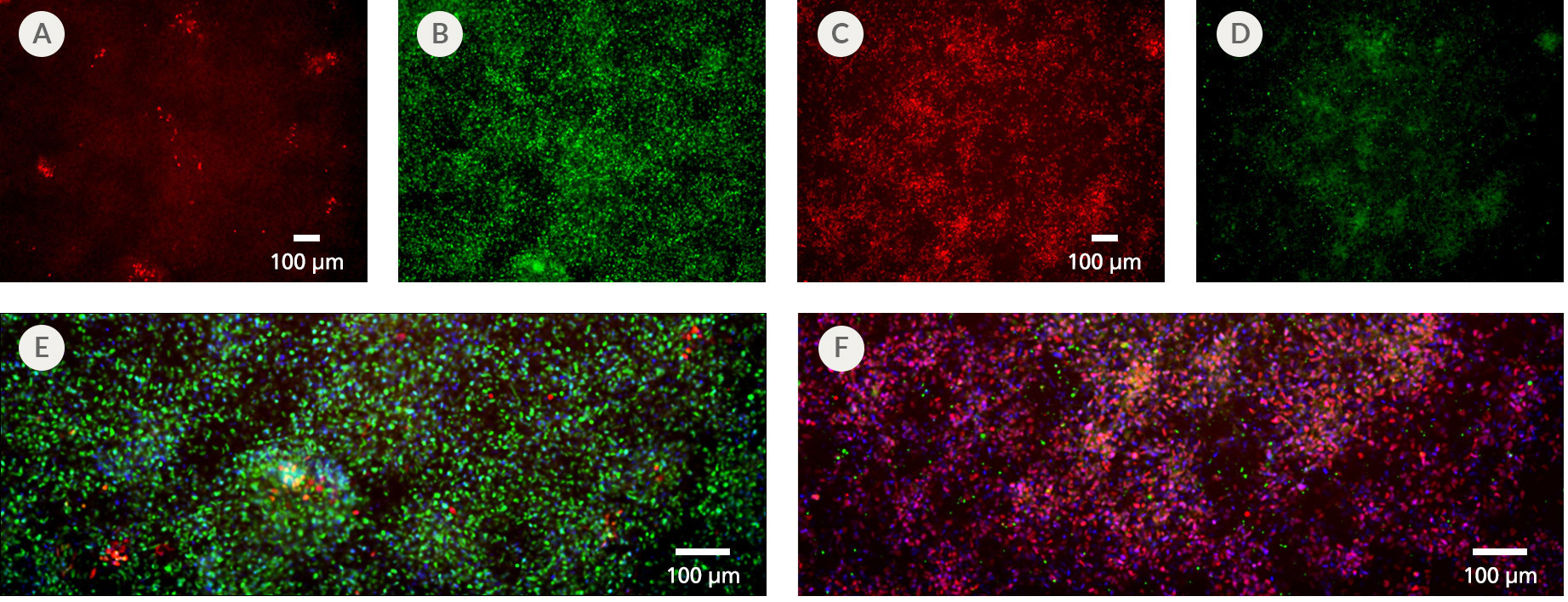

Figure 4. Midbrain-Type Neural Precursor Cells Express Characteristic Markers After Culture in STEMdiff™ Midbrain Neuron Differentiation Kit

NPCs generated from STiPS-F016 hPSCs in mTeSR™1 using the STEMdiff™ SMADi Neural Induction Kit monolayer protocol were differentiated to midbrain-type neural precursors using STEMdiff™ Midbrain Neuron Differentiation Kit for 7 days. (A) Midbrain-type neural precursor cell cultures contain a population of (A) FOXA2-expressing cells (red) and (B) NKX2.1-expressing cells (green). Merge image in (E) showing the bottom half of the same FOV includes DAPI-labeled nuclei (blue) and shows non-overlapping marker expression. The resulting neural precursor cultures also express (C) OTX2 (red) and are negative for (D) central nervous system NPC marker PAX6 (green). Merge image in (F) showing the bottom half of the same FOV includes nuclei that are labeled with DAPI (blue).

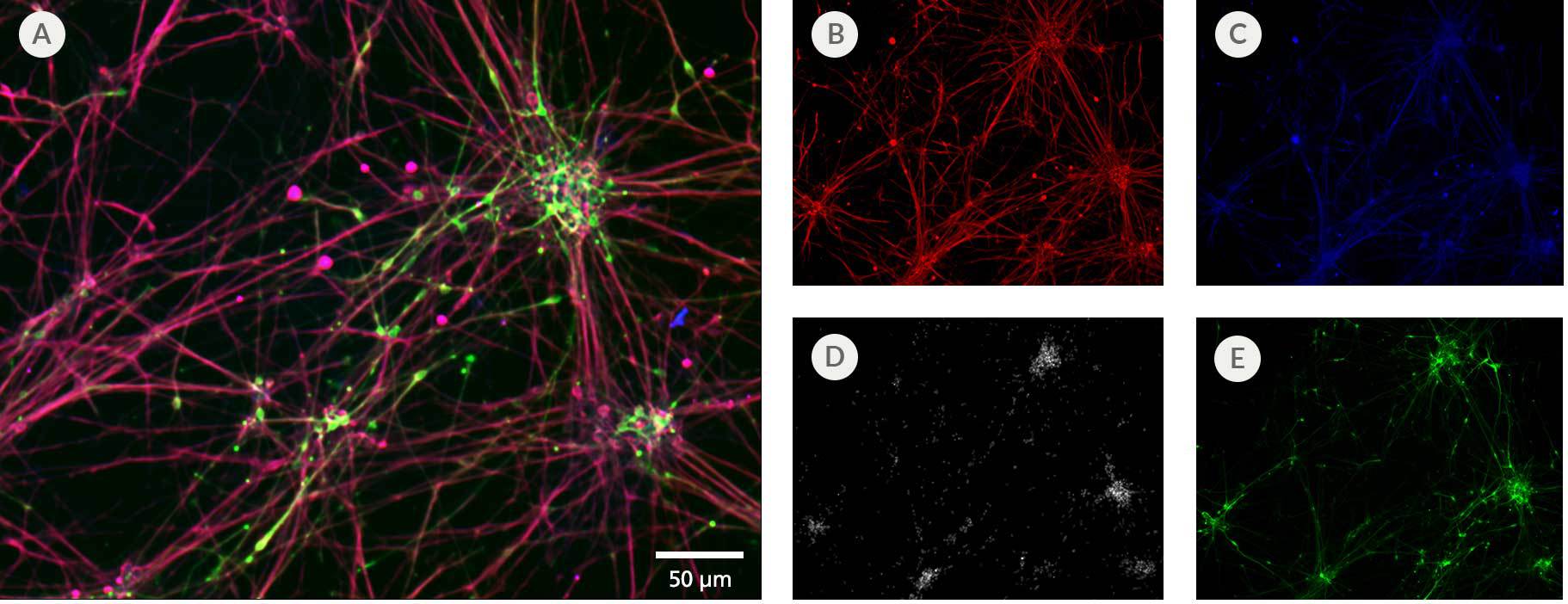

Figure 5. Midbrain-Type Neurons Express Dopamine Transporters (DAT) After Differentiation and Maturation in STEMdiff™ Midbrain Neuron Kits

NPCs generated from H9 hPSCs in mTeSR™1 using the STEMdiff™ SMADi Neural Induction Kit monolayer protocol were differentiated and matured to midbrain-type neurons using the STEMdiff™ Midbrain Neuron Differentiation and Maturation Kits. (A) Midbrain-type neurons were formed after NPCs were cultured with the STEMdiff™ Midbrain Neuron Differentiation Kit for 12 days and STEMdiff™ Midbrain Neuron Maturation Kit for 14 days. The resulting cultures contain a population of (B) class III β-tubulin-positive neurons (magenta), which (C) express DAT in blue, and (E) Tyrosine Hydroxylase-positive cells (green). (D) Nuclei are labeled with DAPI (white).
