Anti-Mouse CD11b Antibody, Clone M1/70

Rat monoclonal IgG2b antibody against human, mouse, rhesus CD11b

概要

技术资料

数据及文献

概要

The M1/70 antibody reacts with CD11b, an ~170 kDa type 1 transmembrane glycoprotein which associates non-covalently with CD18 to form the heterodimeric Mac-1 receptor. Through its interactions with ligands such as ICAM-1 (CD54), ICAM-2 (CD102), ICAM-4 (CD242), iC3b, and fibrinogen, Mac-1 functions in several processes, including the adherence of neutrophils and monocytes to stimulated endothelium and phagocytosis of complement-coated particles. CD11b is expressed on the surface of granulocytes, monocytes, NK cells, dendritic cells, tissue macrophages, and subsets of T and B cells, and has been used as a marker to distinguish naïve and memory CD8+ T cells. CD11b is a relatively late marker for myeloid differentiation and is undetectable on most myelomonocytic hematopoietic progenitor cells and more primitive cells. The M1/70 antibody reportedly blocks iC3b binding to Mac-1. This antibody clone has been verified for purity assessments of cells isolated with EasySep™ kits, including EasySep™ Mouse Monocyte Isolation Kit (Catalog #19861).

技术资料

Document Type	产品名称	Catalog #	Lot #	语言
Product Information Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, Alexa Fluor® 488	60001AD, 60001AD.1	All	English

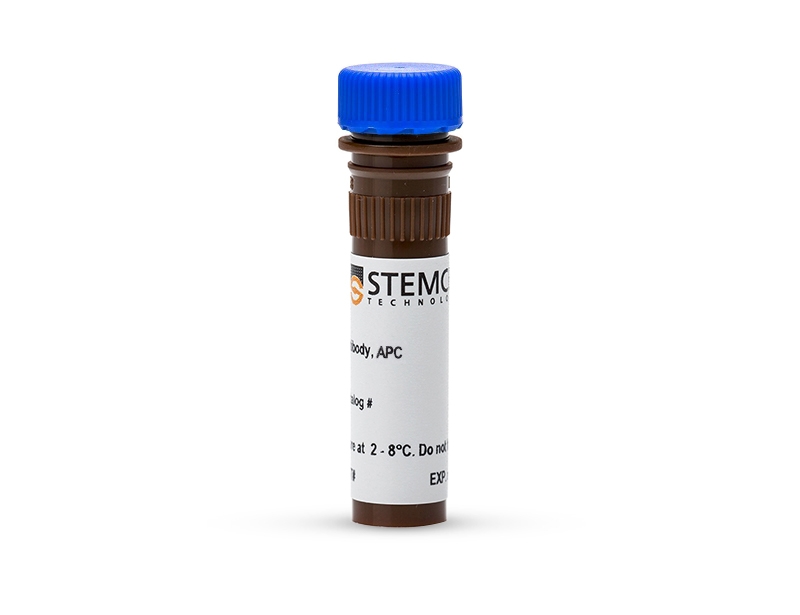

Product Information Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, APC	60001AZ, 60001AZ.1	All	English
Product Information Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, Biotin	60001BT, 100-0438, 100-0439	All	English

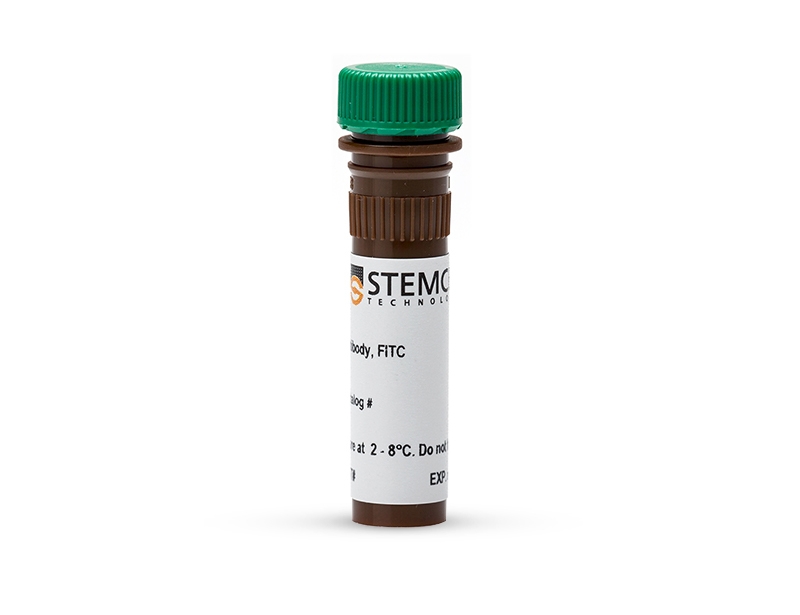

Product Information Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, FITC	60001FI, 100-0436, 100-0437	All	English

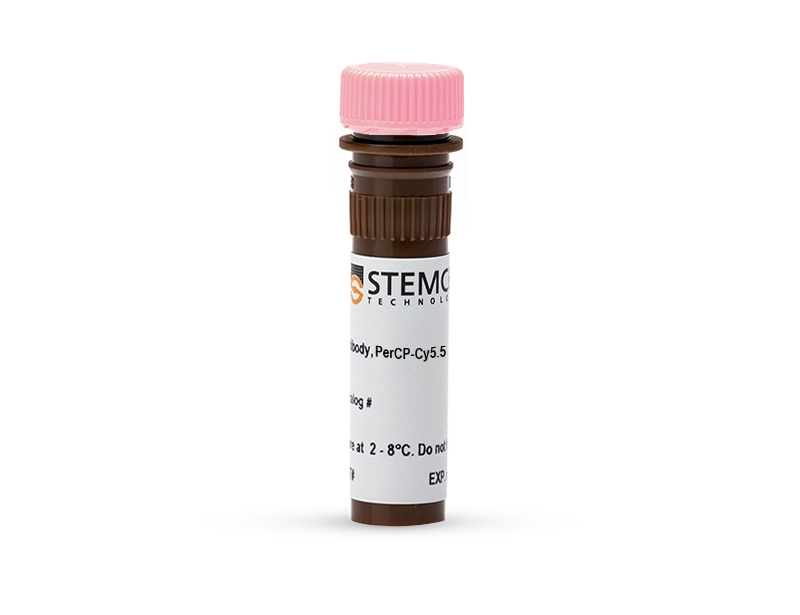

Product Information Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, PerCP-Cy5.5	60001PS, 60001PS.1	All	English

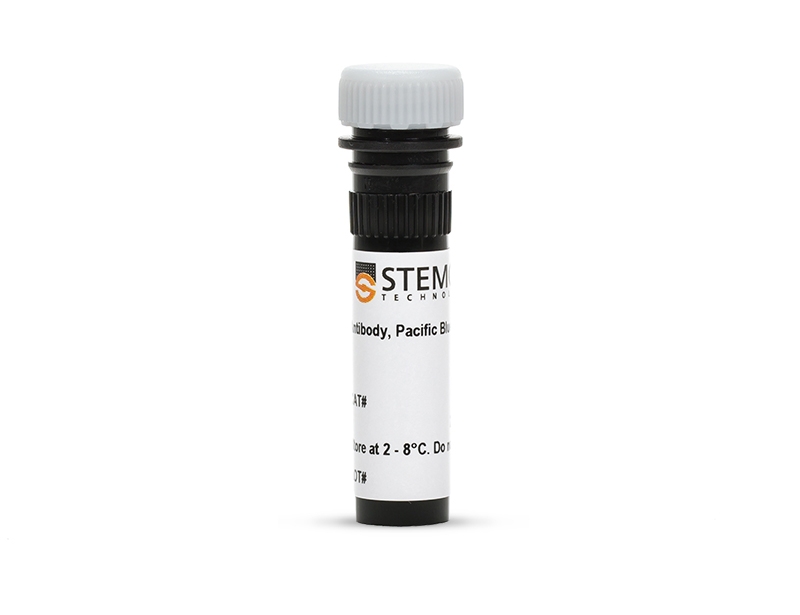

Product Information Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, Pacific Blue™	60001PB, 60001PB.1	All	English

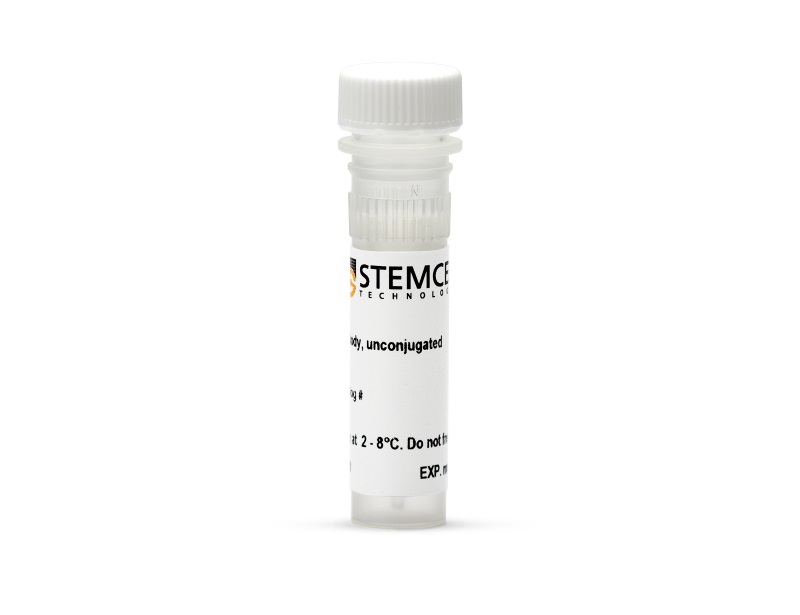

Product Information Sheet	Anti-Mouse CD11b Antibody, Clone M1/70	100-0433	All	English
Product Information Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, PE	100-0434, 100-0435	All	English
Safety Data Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, Alexa Fluor® 488	60001AD, 60001AD.1	All	English
Safety Data Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, APC	60001AZ, 60001AZ.1	All	English
Safety Data Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, Biotin	60001BT, 100-0438, 100-0439	All	English
Safety Data Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, FITC	60001FI, 100-0436, 100-0437	All	English
Safety Data Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, PerCP-Cy5.5	60001PS, 60001PS.1	All	English
Safety Data Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, Pacific Blue™	60001PB, 60001PB.1	All	English
Safety Data Sheet	Anti-Mouse CD11b Antibody, Clone M1/70	100-0433	All	English
Safety Data Sheet	Anti-Mouse CD11b Antibody, Clone M1/70, PE	100-0434, 100-0435	All	English

数据及文献

Data

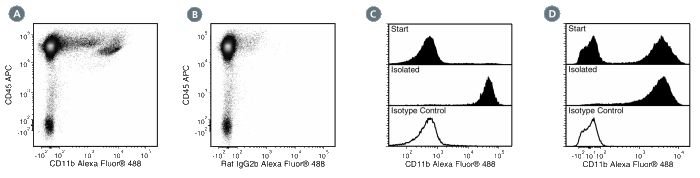

Figure 1. Data for Alexa Fluor® 488-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD11b Antibody, Clone M1/70, Alexa Fluor® 488 and anti-mouse CD45 APC.
(B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with a rat IgG2b, kappa Alexa Fluor® 488 isotype control antibody and anti-mouse CD45 APC.
(C) Flow cytometry analysis of C57BL/6 mouse splenocytes processed with the EasySep™ Mouse Monocyte Enrichment Kit and labeled with Anti-Mouse CD11b Antibody, Clone M1/70, Alexa Fluor® 488. Histograms show labeling of splenocytes (Start) and isolated cells (Isolated). Labeling of start cells with a rat IgG2b, kappa Alexa Fluor® 488 isotype control antibody is shown in the bottom panel (open histogram).
(D) Flow cytometry analysis of C57BL/6 mouse bone marrow cells processed with the EasySep™ Mouse Monocyte Enrichment Kit and labeled with Anti-Mouse CD11b Antibody, Clone M1/70, Alexa Fluor® 488. Histograms show labeling of bone marrow cells (Start) and isolated cells (Isolated). Labeling of start cells with a rat IgG2b, kappa Alexa Fluor® 488 isotype control antibody is shown in the bottom panel (open histogram).

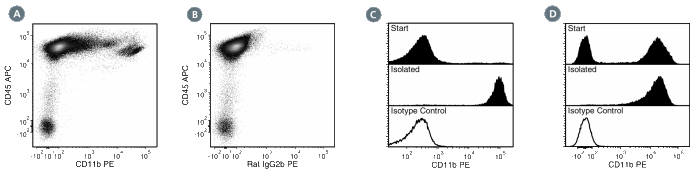

Figure 2. Data for PE-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD11b Antibody, Clone M1/70, PE and anti-mouse CD45 APC.
(B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with a rat IgG2b, kappa PE isotype control antibody and anti-mouse CD45 APC.
(C) Flow cytometry analysis of C57BL/6 mouse splenocytes processed with the EasySep™ Mouse Monocyte Enrichment Kit and labeled with Anti-Mouse CD11b Antibody, Clone M1/70, PE. Histograms show labeling of splenocytes (Start) and isolated cells (Isolated). Labeling of start cells with a rat IgG2b, kappa PE isotype control antibody is shown in the bottom panel (open histogram).
(D) Flow cytometry analysis of C57BL/6 mouse bone marrow cells processed with the EasySep™ Mouse Monocyte Enrichment Kit and labeled with Anti-Mouse CD11b Antibody, Clone M1/70, PE. Histograms show labeling of bone marrow cells (Start) and isolated cells (Isolated). Labeling of start cells with a rat IgG2b, kappa PE isotype control antibody is shown in the bottom panel (open histogram).

Figure 3. Data for Unconjugated

Flow cytometry analysis of C57BL/6 mouse bone marrow cells labeled with Anti-Mouse CD11b Antibody, Clone M1/70, followed by a mouse anti-rat IgG2b antibody, FITC (filled histogram), or a rat IgG2b, kappa isotype control antibody followed by a mouse anti-rat IgG2b antibody, FITC (solid line histogram).

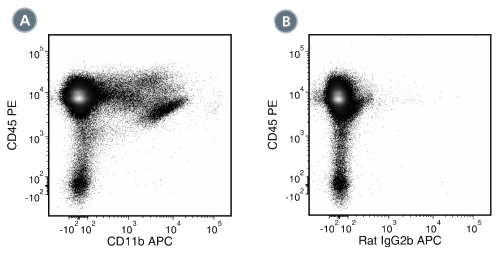

Figure 4. Data for APC-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD11b Antibody, Clone M1/70, APC and Anti-Mouse CD45 Antibody, Clone 30-F11, PE (Catalog #60030PE).
(B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with a rat IgG2b, kappa APC isotype control antibody and Anti-Mouse CD45 Antibody, Clone 30-F11, PE.

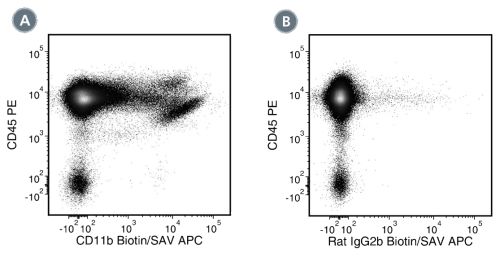

Figure 5. Data for Biotin-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD11b Antibody, Clone M1/70, Biotin followed by streptavidin (SAV) APC and Anti-Mouse CD45 Antibody, Clone 30-F11, PE (Catalog #60030PE).
(B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with a rat IgG2b, kappa biotin isotype control antibody followed by SAV APC and Anti-Mouse CD45 Antibody, Clone 30-F11, PE.

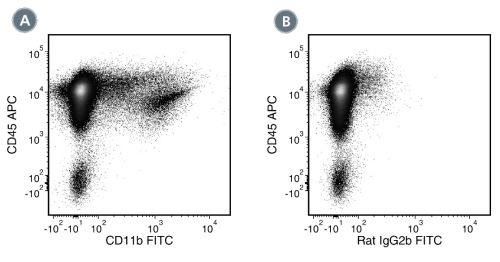

Figure 6. Data for FITC-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD11b Antibody, Clone M1/70, FITC and Anti-Mouse CD45 Antibody, Clone 30-F11, APC (Catalog #60030AZ).
(B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with a rat IgG2b, kappa FITC isotype control antibody and Anti-Mouse CD45 Antibody, Clone 30-F11, APC.

Figure 7. Data for PerCP-Cy55-Conjugated

Flow cytometry analysis of C57BL/6 mouse bone marrow cells labeled with Anti-Mouse CD11b Antibody, Clone M1/70, PerCP-Cy5.5 (filled histogram) or a rat IgG2b, kappa isotype control antibody, PerCP-Cy5.5 (solid line histogram).

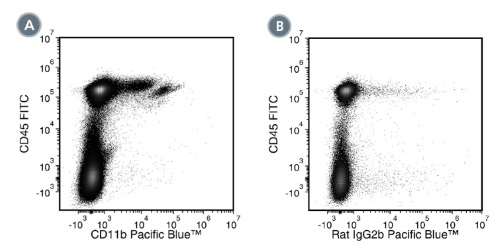

Figure 8. Data for PB-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD11b Antibody, Clone M1/70, Pacific Blue™ and Anti-Mouse CD45 Antibody, Clone 30-F11, FITC (Catalog #60030FI). (B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with a rat IgG2b, kappa Pacific Blue™ isotype control antibody and Anti-Mouse CD45 Antibody, Clone 30-F11, FITC.
