Data

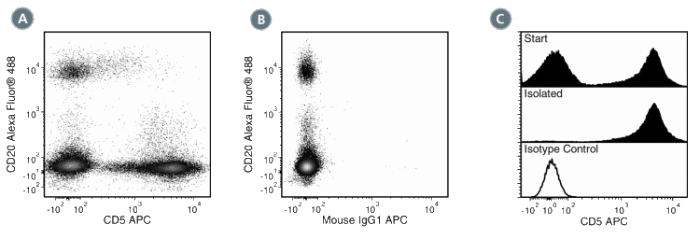

Figure 1. Data for APC-Conjugated
(A) Flow cytometry analysis of human buffy coat nucleated cells labeled with Anti-Human CD5 Antibody, Clone UCHT2, APC and Anti-Human CD20 Antibody, Clone 2H7, Alexa Fluor® 488 (Catalog #60008AD). (B) Flow cytometry analysis of human buffy coat nucleated cells labeled with a mouse IgG1, kappa APC isotype control antibody and Anti-Human CD20 Antibody, Clone 2H7, Alexa Fluor® 488. (C) Flow cytometry analysis of human buffy coat nucleated cells processed with the EasySep™ HLA Whole Blood CD3 Positive Selection Kit and labeled with Anti-Human CD5 Antibody, Clone UCHT2, APC. Histograms show labeling of buffy coat nucleated cells (Start) and isolated cells (Isolated). Labeling of start cells with a mouse IgG1, kappa APC isotype control antibody is shown (solid line histogram).

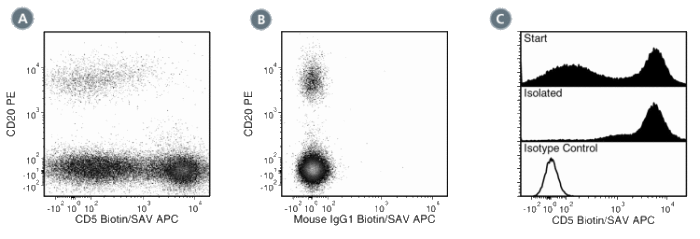

Figure 2. Data for Biotin-Conjugated
(A) Flow cytometry analysis of human buffy coat nucleated cells labeled with Anti-Human CD5 Antibody, Clone UCHT2, Biotin followed by streptavidin (SAV) APC and Anti-Human CD20 Antibody, Clone 2H7, PE (Catalog #60008PE).
(B) Flow cytometry analysis of human buffy coat nucleated cells labeled with a mouse IgG1, kappa biotin isotype control antibody followed by streptavidin (SAV) APC and Anti-Human CD20 Antibody, Clone 2H7, PE.
(C) Flow cytometry analysis of human buffy coat nucleated cells processed with the EasySep™ HLA CD3 Positive Selection Kit and labeled with Anti-Human CD5 Antibody, Clone UCHT2, Biotin followed by streptavidin (SAV) APC. Histograms show labeling of buffy coat nucleated cells (Start) and isolated cells (Isolated). Labeling of start cells with a mouse IgG1, kappa biotin isotype control antibody followed by SAV APC is shown (open histogram).

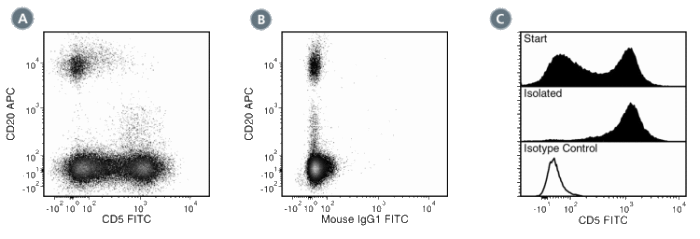

Figure 3. Data for FITC-Conjugated
(A) Flow cytometry analysis of human buffy coat nucleated cells labeled with Anti-Human CD5 Antibody, Clone UCHT2, FITC and Anti-Human CD20 Antibody, Clone 2H7, APC (Catalog #60008AZ). (B) Flow cytometry analysis of human buffy coat nucleated cells labeled with a mouse IgG1, kappa FITC isotype control antibody and Anti-Human CD20 Antibody, Clone 2H7, APC. (C) Flow cytometry analysis of human buffy coat nucleated cells processed with the EasySep™ HLA CD3 Positive Selection Kit and labeled with Anti-Human CD5 Antibody, Clone UCHT2, FITC. Histograms show labeling of buffy coat nucleated cells (Start) and isolated cells (Isolated). Labeling of start cells with a mouse IgG1, kappa FITC isotype control antibody is shown (solid line histogram).

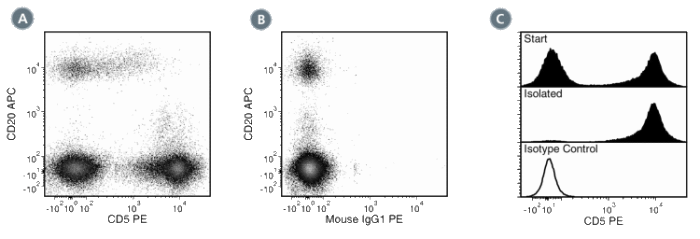

Figure 4. Data for PE-Conjugated
(A) Flow cytometry analysis of human buffy coat nucleated cells labeled with Anti-Human CD5 Antibody, Clone UCHT2, PE and Anti-Human CD20 Antibody, Clone 2H7, APC (Catalog #60008AZ). (B) Flow cytometry analysis of human buffy coat nucleated cells labeled with a mouse IgG1, kappa PE isotype control antibody and Anti-Human CD20 Antibody, Clone 2H7, APC. (C) Flow cytometry analysis of human buffy coat nucleated cells processed with the EasySep™ HLA CD3 Positive Selection Kit and labeled with Anti-Human CD5 Antibody, Clone UCHT2, PE. Histograms show labeling of buffy coat nucleated cells (Start) and isolated cells (Isolated). Labeling of start cells with a mouse IgG1, kappa PE isotype control antibody is shown (solid line histogram).
Figure 5. Data for Unconjugated
Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD5 Antibody, Clone UCHT2, followed by Goat Anti-Mouse IgG (H+L) Antibody, Polyclonal, FITC (Catalog #60138FI) (filled histogram), or a mouse IgG1, kappa isotype control antibody, followed by Goat Anti-Mouse IgG (H+L) Antibody, Polyclonal, FITC (solid line histogram).
Figure 6. Data for PerCP-Cy55-Conjugated
Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD5 Antibody, Clone UCHT2, PerCP-Cy5.5 (filled histogram) or a mouse IgG1, kappa isotype control antibody, PerCP-Cy5.5 (solid line histogram).
